Integrating Coding and Labeling Equipment with Bottle Filling Machines
A Comprehensive Guide for OEMs and Manufacturers
Introduction
The integration of coding, marking, and labeling systems with bottling equipment has become essential for OEMs and manufacturers seeking to optimize their production lines. This comprehensive guide, based on decades of experience, examines the critical aspects of incorporating these technologies into your bottle filling lines, providing the expertise needed to make informed decisions about equipment selection, integration strategies, and implementation best practices.
Bottle filling operations demand more than just efficient liquid dispensing. Regulatory compliance, traceability requirements, and brand protection necessitate sophisticated coding and marking solutions that seamlessly integrate with high-speed production lines. From continuous inkjet printers to laser marking systems, the right coding equipment can transform your bottling operation into a fully automated, compliant, and profitable enterprise.
Understanding Bottle Filling Machine Operations
Bottle filling machines are essential in industries such as beverage, pharmaceutical, cosmetics, and chemicals. They automate the process of dispensing precise volumes of product (liquids or powders) into bottles, ensuring consistency and reducing manual labor.
Core Components and Functionality
Modern bottling equipment operates through a coordinated system of mechanical and electronic components controlled by programmable logic controllers (PLCs). The typical bottle filling line consists of several integrated stations:
Bottle Handling System
Conveyor belts transport bottles through various stages, with precise positioning ensured by encoders and sensors. These systems must maintain consistent bottle placement to ensure accurate filling and coding operations.
Filling Stations
Whether using overflow fillers, piston fillers, or pump fillers, the filling mechanism must be synchronized with downstream coding equipment. Timing coordination is critical to prevent spillage and ensure proper code placement.
Control Systems
PLC-based control systems manage the entire operation, from bottle detection to filling completion. These systems provide the integration points necessary for coding equipment communication.
Safety and Quality Control
Integrated sensors monitor bottle presence, fill levels, and system status, providing real-time feedback for quality assurance.
Coding and Labeling
Integrated coding and labeling equipment provide essential product information and traceability capabilities directly within the filling line workflow.
Coding and Labeling Technologies for Bottle Applications
After filling, bottles must be marked with essential information such as batch numbers, best before dates , barcodes, and lot codes. This data is critical for regulatory compliance, inventory management, and consumer transparency.
- Coding and marking equipment: Print information directly onto bottles or labels using technologies like inkjet and laser.
- Labeling machines: Apply information to labels with product details, branding, and regulatory information with various labeling technology.

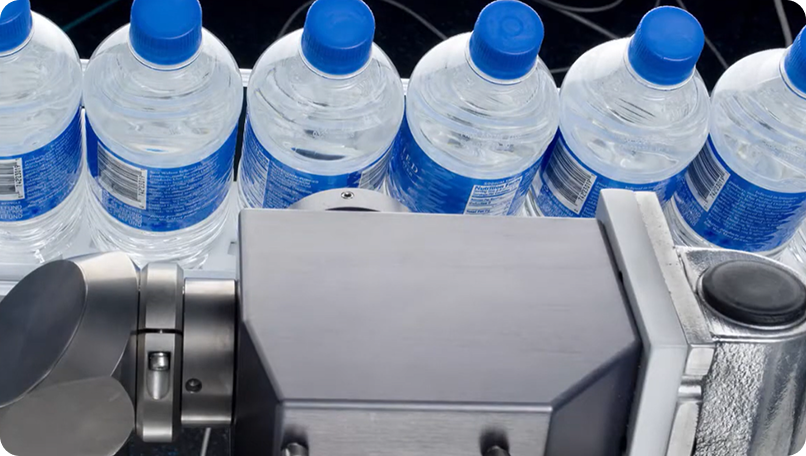

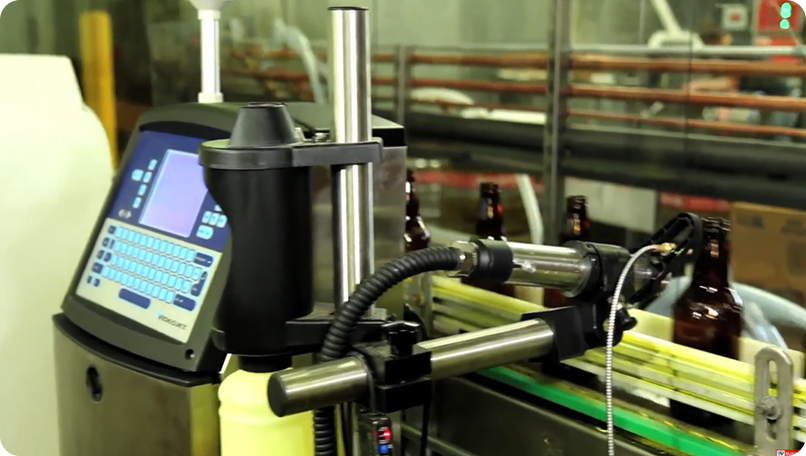

Continuous Inkjet (CIJ) Printers
Continuous inkjet technology is the leading solution for bottle coding in high-speed filling operations. CIJ systems print directly onto bottles without contact, protecting fragile glass or irregularly shaped containers and maintaining uninterrupted production flow. Capable of marking over 21,000 bottles per minute (and potentially even faster depending on the code), they efficiently support high-volume lines. CIJ printers work on a wide range of materials like glass, PET, and aluminum, using ink formulated for each surface. They also deliver versatile coding—printing multiple lines of text, barcodes, 2D codes, and logos for complete product identification.
Laser Marking Systems
Laser marking technology is gaining popularity in bottle filling operations for its ability to deliver permanent, high-quality codes. These marks are tamper-proof and resistant to fading, scratching, and environmental exposure, making them ideal for applications where traceability and safety are critical, such as in the food and pharmaceutical industries. Unlike inkjet systems, laser coders require no ink or make-up consumables, helping reduce both operating costs and environmental impact . They also offer exceptional precision, even on curved surfaces or in tight marking areas, helping ensure consistent and legible codes throughout the production process.

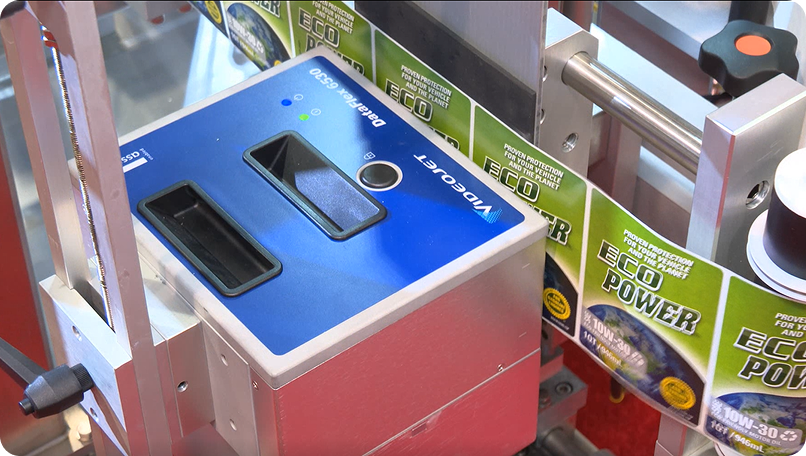

Thermal Transfer Overprinting (TTO)
TTO is ideal for printing high-resolution codes—like batch numbers and expiration dates—on flexible packaging materials. It typically prints on labels before they’re applied to bottles, ensuring crisp, durable marks. TTO offers clean starts and stops, minimal waste, and eco-friendly operation, making it a strong choice for industries requiring clear traceability and branding.
Integration Strategies and Best Practices
System Architecture Planning
Effective integration of coding equipment with bottle filling machines begins with thoughtful system architecture planning. This includes establishing reliable communication between the filling machine’s PLC and the coding equipment using standard industrial protocols such as Ethernet/IP, Modbus, or DeviceNet. Synchronization is also critical—precise timing between bottle positioning, filling, and code application ensures consistent product quality and maintains high throughput.
Equally important is centralized data management. A unified system can coordinate coding data across multiple production lines and integrate seamlessly with enterprise resource planning (ERP) platforms. This approach not only streamlines operations but also enhances traceability, compliance, and responsiveness across the manufacturing process.
Integration Assessment
Get in touch with our expert sales engineers for a free integration assessment.
Physical Integration Considerations
Physical integration of coding equipment into bottling lines requires careful planning to ensure optimal performance and minimal disruption. Equipment must be precisely positioned to allow clear access to the bottle surface while maintaining safe clearance for bottle movement. Factors such as bottle height variation, conveyor speed, and maintenance access should be considered during installation.
Environmental and safety considerations are equally important. Coding systems must be protected against moisture, temperature changes, and exposure to cleaning chemicals—common in beverage production environments. Additionally, all installations must comply with safety standards, including proper guarding, emergency stops, and interlocks to protect operators and maintain regulatory compliance.
Process Optimization
Optimizing the performance of integrated coding and bottling systems requires a focus on throughput, quality, and maintenance. Coordinating system timing—such as conveyor speeds and code placement—helps eliminate bottlenecks and maximize line efficiency. Strategic use of buffer zones can further smooth production flow and reduce downtime.
To maintain high coding accuracy, vision systems and code verification tools should be implemented to detect missing or unreadable codes and trigger corrective actions when needed. Additionally, aligning maintenance schedules for both filling and coding equipment minimizes unplanned downtime and helps ensure consistent, peak performance across the entire line.
Coding and Labeling Technology Selection Criteria
Production Requirements Analysis
Choosing the right coding technology starts with a clear understanding of your production needs. Begin by assessing your maximum line speed and daily output to ensure the equipment can meet current demands and scale with future growth. Next, consider the characteristics of your bottled products—such as viscosity, foaming behavior, and container materials—as these factors influence both filling and coding system compatibility. Finally, define the exact code content required on each bottle, including date codes, batch numbers, barcodes, or regulatory information, to ensure the selected technology can deliver the necessary precision and flexibility.
Integration Compatibility
Ensuring integration compatibility is essential when selecting coding equipment for a bottling line. Start by confirming that the equipment can communicate with your existing PLC platform using supported protocols like Ethernet/IP, Modbus, or DeviceNet. Physical constraints should also be evaluated—consider available space, mounting options, and accessibility, especially in retrofit scenarios where layout flexibility may be limited. Additionally, verify that your facility can meet the utility requirements of the equipment, including electrical power, compressed air, and ventilation, to support reliable and efficient operation.
Cost-Benefit Analysis
A thorough cost-benefit analysis is essential when selecting coding and labeling equipment. Start by evaluating the initial investment, including the purchase price, installation costs, and any necessary infrastructure modifications. Then, assess ongoing operating expenses such as consumables, maintenance, and energy use—keeping in mind that continuous inkjet (CIJ) systems require ink and solvent, while laser systems have minimal consumables but higher upfront costs. Finally, calculate the expected return on investment (ROI) by factoring in gains from improved efficiency, reduced labor, enhanced product quality, and benefits like fewer recalls, better traceability, and stronger brand protection.
Request an expert consultation analysis for your bottling line
Implementation Process and Project Management
Pre-Implementation Planning
Successful integration begins with thorough pre-implementation planning. This includes a detailed site assessment to evaluate space constraints, utility availability, and environmental conditions. A well-defined integration design should outline equipment placement, communication protocols, and process sequences to ensure seamless operation. Additionally, conducting a risk assessment helps identify potential challenges early and allows for the development of mitigation strategies that support a smooth deployment.
Installation and Commissioning
During installation and commissioning, precise execution is key. Equipment should be installed according to manufacturer specifications, with attention to mounting, alignment, and accessibility. System integration involves configuring communication protocols, establishing data exchange procedures, and validating functionality through calibration and testing.
Training and Support
Comprehensive training and support are essential for the successful implementation and long-term performance of coding and labeling systems. Operators should receive hands-on training covering equipment operation, routine maintenance, and basic troubleshooting to ensure smooth day-to-day use. Establishing a strong relationship with equipment suppliers is also key—ongoing technical support and access to maintenance services help minimize downtime and extend equipment life. Additionally, maintaining clear documentation of system configurations, operating procedures, and maintenance schedules supports consistent performance and simplifies future updates or troubleshooting.
Optimize Your Integration
Partner with our coding and marking specialists for seamless equipment integration, customized solutions, and expert training.
As you consider integrating coding and marking equipment with your bottle filling operations, partnering with experienced coding equipment manufacturers is crucial for success. These partnerships provide access to technical expertise, application support, and ongoing service that can significantly impact the success of your integration project.
Conclusion
The integration of coding, marking, and labeling equipment with bottle filling machines represents a critical investment in operational efficiency, regulatory compliance, and long-term competitiveness. Success requires careful planning, appropriate technology selection, and professional implementation support.
By understanding the complexities of integration, selecting appropriate technologies, and partnering with experienced equipment manufacturers, OEMs and manufacturers can achieve significant improvements in productivity, quality, and profitability. The case studies and success stories demonstrate that well-planned integration projects can deliver substantial returns on investment while enhancing operational capabilities.
The future of bottle filling operations lies in intelligent, integrated systems that combine filling, coding, and quality control technologies into seamless, automated solutions. Organizations that embrace these integration opportunities will be well-positioned to compete in an increasingly demanding marketplace.
Take action today by contacting coding equipment manufacturers to discuss your specific integration requirements and explore customized solutions that can transform your bottle filling operations. The investment in proper integration will pay dividends through improved efficiency, enhanced quality, and sustained competitive advantage.
