Videojet BX 6500/6600 Series Printers

Videojet BX 6500/6600 Series Printers

Commercial Graphics and Addressing

Binary Array InkJet Addressing System for High speed Digital Applications

The Videojet BX Series Binary Array inkjet printer delivers versatile, dependable high-speed digital printing for increased productivity.

Contact us for New Equipment Sales: +65 3138 2040

×

Contact Us:

Equipment Quote: +65 3138 2040
Service & Support: +65 6349 2272

BX 6500/6600 Series

New Equipment Sales: +65 3138 2040

×

Contact Us

Specs

Specification
Value
Print Resolution128 x 256 dpi (in the direction of travel)
128 x 128 @ 1970 fpm (600 mpm), image dependent
Print Height2 inches (51 mm) per printhead
Printhead ControlUp to two printheads per cabinet (four printheads total)
Maximum Line Speed1970 fpm (600 mpm), image dependent
ProcessorIntel Processor
Memory4 GB
Operating SystemWindows® IoT Enterprise
Hard Drive500 GB
Network2 x 1GB LAN connections
Diagnostic SoftwareInspector™
Data FormatsFixed Field, Fixed Record, Delimited, Multiline, CSV, TEX, TX2, MDB, DBF, JS2
InksBlack, Red, Blue and Green
Positive Air40/80 psi (15/30 L) min. consumption

Download full spec sheet

Benefits

Exceptional throughput on even the most complex jobs:

  • Provides one or two printhead(s) with 2 in (51 mm) print band(s) running at speeds up to 1970 fpm (600 mpm)
  • A single Crescendo Controller can control one or two BX6500/6600 cabinets with up to four printheads
  • Dual job capability to place each head on a separate line – both controlled by one Crescendo controller or complete a single job in half the time

Fast-drying inks to print on a broad range of materials:

  • A wide variety of fast-drying inks are available, ranging from low VOC acetone to MEK
  • Print capabilities that include printing on aqueous coated, UV coated and other difficult-to-print high gloss stocks

High reliability plus durability equals high productivity:

  • Designed to last the life of the system, the BX6500/6600 Series printheads are built to last and not be “consumable” items
  • BX6500/6600 series printers are designed to withstand the most rugged applications
  • System includes corrosion and solvent resistant stainless steel IP5X-rated cabinet and printheads

“I have found the system easy to use and maintain. It has a user-friendly interface and is very adaptable with print options, including bar codes and images.”

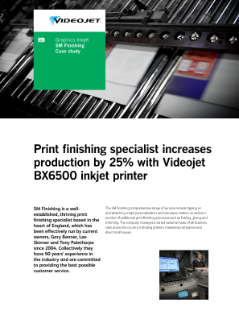

Richard Hallam – Machine Operator, SM Finishing (case study)
